Product description

A cost-effective and versatile fiber-reinforced, cement-based floor screed. Suitable for a wide range of adhesive carpeting in public areas and for floor levelling in residential construction, either hand-applied or pumped. Can be used for the surface casting of thermal floors and floating floor systems in public spaces and residential buildings, and for levelling cavity slabs and concrete floors. Flow FS is low alkaline.

  • Layer thickness 4 - 50 mm (partial levelling max. 80 mm)
  • Can be pump-applied and manually levelled
  • Compressive strength C 20, material usage 1.7 kg/m²/mm
  • Self-leveling

Applications

  • Floor levelling for adhesive carpeting in public premises
  • For alkaline protection
  • Floor leveling screeds for living spaces
  • For surface castings of heated floors and floating floor systems
  • For leveling cavity slabs and concrete floors
The product is listed in the portal for building products that can be used in Nordic Swan Ecolabelled buildings.
GTIN code Product name Product number Package size

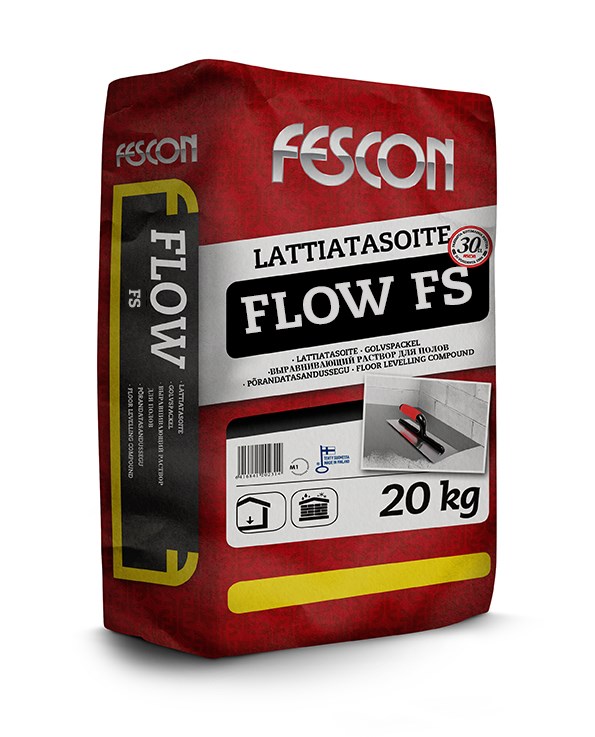

6416841202451 FLOW FS 20 KG 20245 20 kg
6416841331458 FLOW FS 1000 KG 33145 1000 kg
FLOW FS BULK DELIVERY 33845 kg

Base

  • Concrete flooring, cavity tiles, cement-based screeds, gypsum plasterboard, unsurfaced wood-based building boards and insulating boards.
  • The base must be clean, dust-free, solid and firmly fixed in place.
  • Loose layers, cement paste, and other impurities have been mechanically removed to ensure adhesion between the floor levelling compound and base
  • The tensile strength of the base must be greater than 0.5 MPa. If the base is made of weak concrete (tensile strength less than 0.5 MPa), the floor must be a floating structure of wood, gypsum board or insulation board. The floating floor structure must be detached from the base floor by Fescon Separation fabric and from vertical structures by Fescon Bordering strip.
  • The temperature of the underfloor structure is > +10°C and relative humidity < 95% RH The relative humidity of the underfloor structure affects the setting of the floor levelling compound
  • If necessary, any unevenness can be corrected with Fescon floor screeds suitable for the application before floor leveling.
  • Possible leakage areas are sealed with putty

Priming

  • Priming is performed according to the instructions of Fescon Adhesive Primer or Flow Primer, depending on the base
  • Priming of non-absorbing surfaces (such as ceramic tiles, epoxy, metal surfaces) according to the instructions of Primer PLUS

Instructions for use

  • The workspace must be protected all over against wind, draught, sun, and rain
  • When pumping, the minimum layer thickness must be checked with the floor work contractor
  • During floor work, the indoor temperature has to be +10°C…+25°C, and the relative humidity of the indoor air > 40% RH
  • Mix a bag (20 kg) of the levelling compound in 3.6 - 4.0 litres of cold water
  • The levelling compound is mixed to a consistent paste with a drill paddle, or if pumped, with an automated or pipe mixer.
  • Apply the levelling compound with a steel trowel or pump onto the surface being levelled. Pumped floor leveling with a thickness of 10–30 mm is finished with a roller screed, and thicker layers are leveled by breaking the surface tension of the leveling compound.
  • Workable for about half an hour after adding water.
  • Wash tools with water immediately after completing the work
  • Make sure ventilation is adequate after finishing the floor levelling compound work.
  • If need be, the setting of the floor levelling compound can be accelerated by grinding the surface because this reduces the resistance of water vapour in the surface of the floor levelling compound
  • The setting times are greatly affected by the conditions at the work site, ventilation, and the amount of water used in the floor levelling compounds
  • Pumping from a tanker lorry is not recommended < -25°C
  • The floor load capacity is estimated work site specifically with the floor levelling contractor

Covering

  • Can be coated with ceramic tiles, plastic coatings, textile mats, vinyl tiles, wood parquet or laminate, and cork. If necessary, overlay with Fescon manually-applicable levelling compounds, such as FlowPlan
  • However, it must be ensured that the levelling compound, concerning its technical properties, meets the requirements of the manufacturer of the floor covering and RYL for bases to be covered, with the entire structure in mind
  • Once the floor levelling compound has reached the degree of dryness required by the covering, the floor is covered or aftercare commenced
  • The floor levelling compound must not be left uncovered for more than 3 months due to the risk of it cracking or detaching
  • Check the humidity of the entire floor structure before installing a coating
  • Good setting properties for the floor levelling compound require that the indoor humidity is less than 50 % RH and the temperature is over +20°C. Poor conditions slow down the development of the strength characteristics of floor levelling compounds and increase the setting time
  • In conditions with an RH of less than 40%, special attention should be paid to when to start the aftercare. The need for aftercare is assessed on a case-by-case basis.

Commissioning - hot water circulation heating

  • Floor heating with water circulation may be started after seven days from applying the floor levelling compound. The water temperature is first set to +20°C. The final water temperature may be applied after the floor covering is installed. Higher water temperatures cause a major an increase of it cracking, so they must be avoided at all costs.

Storage and handling of waste
See the separate storage and disposal instructions https://www.fescon.fi/en/material-bank

Material usage

app. 1,7 kg/m²/mm

Water requirement 3,6 – 4,0 l / 20 kg (125 – 135 mm:n flow as measured by Fescon flow plate)
Type powder
Binder special cement
Colour gray
Maximum grain size

1.2 mm

Package size 20 kg, 1000 kg, bulk delivery
Storage

storage time in a dry location approx. 12 months

Layer thickness

4 – 50 mm (partial levelling max. 80 mm), as a floating floor structure min. 30 mm over a floor heating pipe min. 16-20 mm

Fibre fibre-reinforced, plastic fibre
Additives

substances improving workability, casein-free

Usage temperature

+10°C...25°C (platform and internal temperature)

Workability time app. 0,5 h
Coatable it is carried out 1 to 8 weeks later, depending on the conditions and layer thickness (+20°C, RH 50 %)
Walkable app. 4 – 6 h
Strength class C 20 (EN 13813)
Compressive strength

> 20 MPa (28 day +20°C, RH 50%)

Adhesion strength

> 1,0 MPa for concrete (28 day, +20°C, RH 50%)

Flexural bond strength F 4 (EN 13813)
Surface tensile strength > 0,6 MPa
Wear resistance

RWFC 550 (EN 13892-7)

Frost resistance non-frost resistant, for indoor spaces
pH < 11 low alkaline (hardened material)
Waterproofness

waterproof

Limitation of liability, product use notes and restrictions: Please familiarize yourself with Fescon Oy's general terms of delivery and the design and work instructions related to the product.
